4 inch Round TFT LCD, Circular TFT LCD 4" Product Description
Saef Tech SF-TO400XC-8996A-N is a Automotive Grade TFT LCD Display widely used for Car Dashboard. its diagonal size is 4 inch with display resolution 720x720 pixels. It supportsMIPI interface, and supply voltage (Vdd) range from 2.6V to 3.6V, typical 2.8V.
SF-TO400XC-8996A-N TFT LCD module is circular mode with brightness 500-1000 nits (typical value). The module also is available for PCAP (Projected Capacitive Touch Screen) optional. It can be operating at temperatures from -30℃ to +85℃;
| Item of general information | Contents |
| LCD Display Size (Diagonal) | 4 inch Round TFT |
| Module Structure | TFT Display |
| LCD Display Type | TFT/TRANSMISSIVE |
| LCD Display Mode | Normally Black |
| Recommended Viewing Direction | IPS all viewing angles |
| Module size (W×H×T) | 105.3x109.61x2.3 mm |
| Active area (W×H) | 101.92 mm Diameter |
| Number of pixels (Resolution) | 720RGB×720 pixel |
| Module Interface Type | MIPI interface |
| Operating Temp. | -30℃ to +85℃ |
| Surface Luminance | 1000 cd/m2 |
| Color Numbers | 16.7M |
| Backlight Type | White LED |
Pin Definition
Pin1, LED A LED ANODE
Pin2, LED K1 LED CATHODE
Pin3, LED K2 LED CATHODE
Pin4, VCI Power supply
Pin5, IOVCC Power supply
Pin6, RESET Reset Signal , Active Low
Pin7, TE Tearing effect
Pin8, PWM LCD backlight control PWM
Pin9, GND Ground
Pin10, D0P MIPI DSI differential data pair (Data lane 0)
Pin11, D0N MIPI DSI differential data pair (Data lane 0)
Pin12, GND Ground
Pin13, D1P MIPI DSI differential data pair (Data lane 1)
Pin14, D1N MIPI DSI differential data pair (Data lane 1)
Pin15, GND Ground
Pin16, CLKP MIPI DSI differential clock pair
Pin17, CLKN MIPI DSI differential clock pair
Pin18, GND Ground
Pin19, D2P MIPI DSI differential data pair (Data lane 2)
Pin20, D2N MIPI DSI differential data pair (Data lane 2)
Pin21, GND Ground
Pin22, D3P MIPI DSI differential data pair (Data lane 3)
Pin23, D3N MIPI DSI differential data pair (Data lane 3)
Pin24, GND Ground
Pin25, TP_INT Touch Interrupt
Pin26, TP_SDA Touch IIC Data signal
Pin27, TP_SCL Touch IIC Clock signal
Pin28, TP_RESET Touch Reset Signal
Pin29, TP_VCI Touch Power supply
Pin30, TP_IOVCC Use 1.8V or 3.3V,It must be same with user Touch IIC I/O voltage

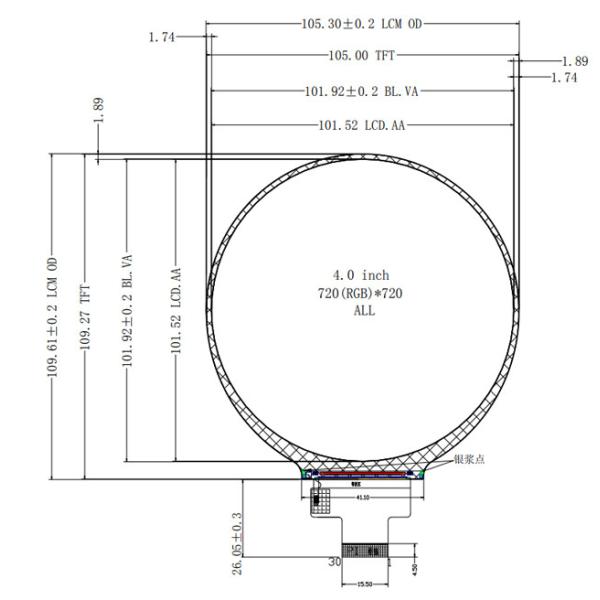

4 inch Round TFT LCD, Circular TFT LCD 4" Product Drawing
